POS-CBL-M12S-F05A-100DH-054N-000
POS-CBL-M12S-F05A-100DH-054N-000 Connecting Cable & Connector Johor Bahru (JB), Malaysia Supplier, Wholesaler, Supply, Supplies | CW Process Instrumentation Store

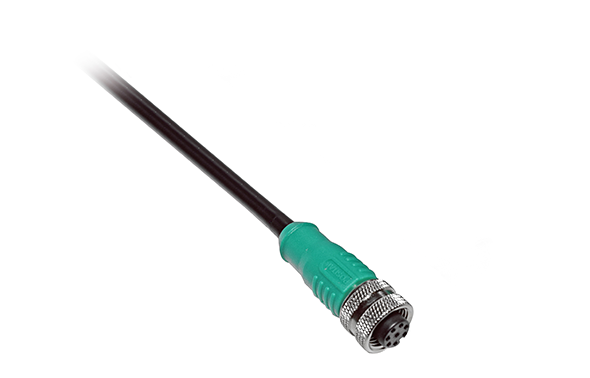

10050886 - POS M12 5pin-A Female+10m PUR Cable

Mechanical Data
Operating Temperature -25°C to 85°C / -13°F to 185°F
Weight 500 g
Characteristics of Head 1
Standards/Regulations M12 Connector
Coding A - Standard
Gender Female
Number of Positions 05
Contact Surface Material Brass (Gold Plated)
Housing Material TPU (Plastic)
Knurls Material Brass, Nickel Plated
Contact Connection Method N.A
Degree of Protection IP67
Fixing Torque 0.4 Nm (M12 Connector)
Cable Specifications
Length of Cable 10.0 m
Outer SheathType FR-TPU (UV)
Outer Sheath Color Black
Shielding Braided + Foil Shielding
Material Conductor Insulation PP
Conductor Cross Section (in sqmm) 5 x 0.25
Number of Leads 5 Leads
Twisted Pair No
AWG Signal Line AWG 24
External Cable Diameter 5 mm ± 0.15mm
Smallest Bending Radius - Fixed Installation 25 mm
Smallest Bending Radius - Movable Installation 50 mm
UL Style UL 20549
Insulation resistance * (per km) ≥ 10 MΩ*km
Conductor Resistance * (per km) ≤ 93.25 Ω/km
Certificates UL Listed/ CE / RoHS
Characteristics of Head 2
Standards/Regulations Cable Cut
General Data
Ordering Code 10050886 - POS-CBL-M12S-F05A-100DH-054N-000
Weight 500 g
Operating Temperature -25°C (-13°F) to 80°C (176°F)
